Pull And Push Force: | 800N | Rated Power: | 120W |
---|---|---|---|
Running Speed: | 120mm/s | Rail Length: | 3m, 3.3m, 3.6m |
Apply Door Area: | 12 Sqm | Remote Distance: | 25-35m |
Remote Frequency: | 433.92Mhz | Remote Code: | Rolling Code |
High Light: | commercial garage door opener,belt driven garage opener |

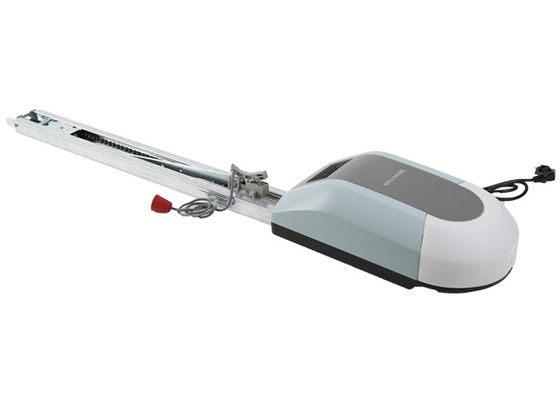

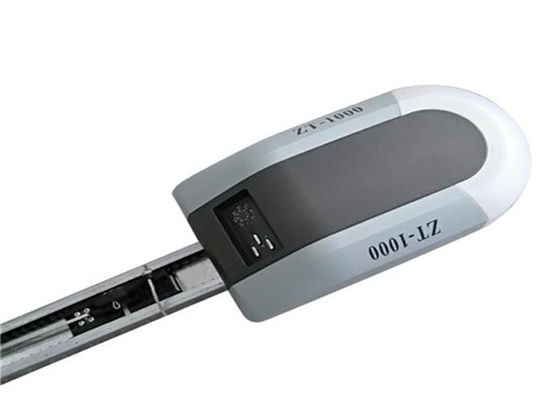

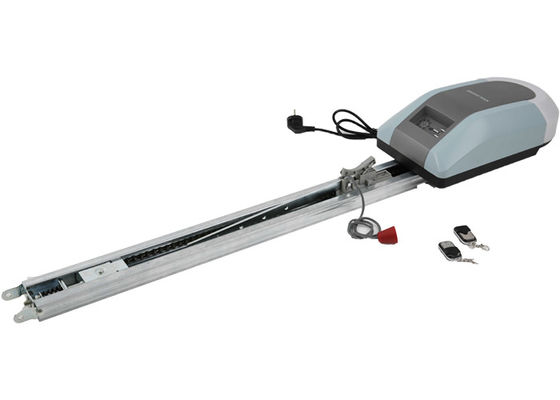

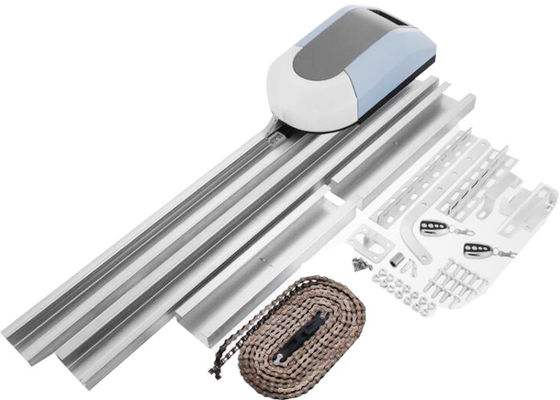

China Battery Operated Belt Drive Big Garage Door Opener / Operator / Motor
chain drive overhead garage door opener
power:100W.Force:600N
soft start&stop,chain drive
apply door area:12 sqm
CE&ROHS
800N Automatic garage door
.................................................................................................................................
Technical parameters:
Volt | AC220-240V,50HZ /110V,60HZ |
Motor volt | DC24V |
Power | 120W |
Force | 800N |
Remote distance | 25-35m |
Remote frequency | 433.92MHZ |
Max door area | 7sqm |
Temperature range | -35-70°c |
Rail length | 3.0m,3.3m |
running speed | 120mm/s |
Auto lighting | turn off after 3 minutes |
Quantity of transmitter | 2 /unit |
Auto-closing time | 3 minutes(optional) |
Opener noise | Below 60DB |
Operation time | More than 40000 times |
....................................................................................................................................
Functions:
1. Debugging features
Install and debug garage door opener simply.setting and debugging can be done on the opener cover
2. Remote operation
Apply 433.92MHZ rolling code remote control,self-lock function when closing the door,which will ensure the safety of your property. code simply
3. Driving mode
Chain drive,apply advance flexible starting and stopping technique, starting and stopping force is 120mm/s,there is 15cm slowly movement when starting and stopping, so as to decrease the force to the door.
4. Limit mode
Electronic limit,and the limit will not change even the power off,
5. Obstruct-return function
Door will rise up to the culminating point if obstructed during the process of falling,and will stop automatically if obstructed during the process of rising,which will ensure the safety of you and your car as well as your family members.
6. Lighting function
Automatic lighting when starting and stopping,using 220V/25W bulb lighting,the lamp will be lighted for 3 minutes.
7. Infrared protection function
When door is closed in the process of falling,it will stop immediately and move upwards in case a man or object shelters the infrared beam.
8. Electrical storage device
Door will be used for 48 hours when power off,and door can be started and stopped 10-15times.
9. Automatic closing function
The automatic closing can be set, it is within 3 minutes.
10. You can use manual switch to open and close the door.
Select parts:
1. photocell
2. manual switch
3. battery
4. external receiver
5. wall trailer for remote control
.................................................................................................................................
production line
Ageing of the opener
opener production line
Opener packing
