Pull And Push Force: | 1000N | Rated Power: | 175W |
---|---|---|---|
Running Speed: | 120mm/s | Rail Length: | 3m, 3.3m, 3.6m |
Apply Door Area: | 12 Sqm | Remote Frequency: | 433.92Mhz |
Color: | Any Color You Want | ||
High Light: | belt driven garage door opener,commercial garage door opener |

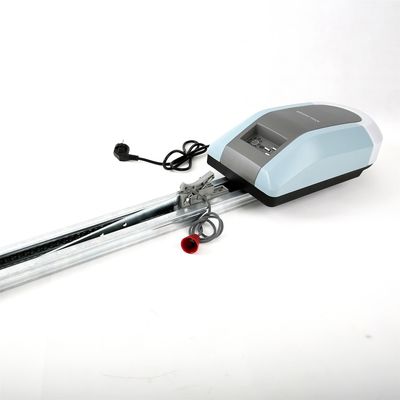

Belt drive Garage Door Opener for sectional garage door motor
This makes our roller door opener the right choice when choosing your new roller door opener.
Feature
Specification- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Item | ZTGD800 | ZTGD1000 | ZTGD1200 |
Opener Power | 168W | 200W | 260W |
Standard Force | 800N | 1000N | 1200N |
Apply door area | 12 Square meter | 15 Square meter | 17 Square meter |
Rail Length | 3m,3.3m,3.6m,3.9m | 3m,3.3m,3.6m,3.9m | 3m,3.3m,3.6m,3.9m |
Remote Frequency | 433.92MHZ | 433.92MHZ | 433.92MHZ |
Remote Distance | 25-35m | 25-35m | 25-35m |
Function Sketch- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1, Opens door smoothly with soft starts and stops
2, Electronic limit setting provides precise door travel control
3, Automatic power check function, read the running power automatic and it will stop automatically if obstructed during the process of rising and falling.
4, Easy programming with control panel
5, Emergency manual release handle
6, Door opener can be self locked in case of power failure.
7, Bulb lighting system supplies light for safer evening exits and entries. Turn on when door is activated and automatically turns off four minutes later
Using Door Type - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This Garage Door Opener is use only with residential sectional or one piece overhead garage doors.
1, Sectional overhead garage door
2, One piece overhead garage door
