Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance

China Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance supplier
Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance supplier Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance supplier Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance supplier

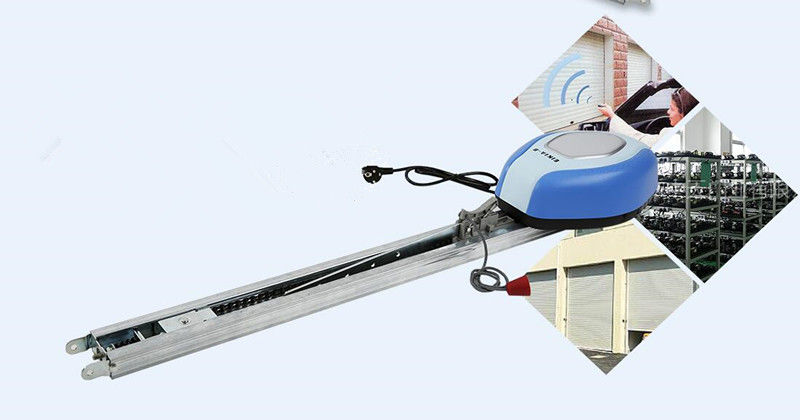

Large Image :  Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance

Product Details:

Place of Origin: China
Brand Name: EIKIA
Certification: CE, RoHs, RCM
Model Number: EIKIA600, EIKIA700, EIKIA800

Payment & Shipping Terms:

Minimum Order Quantity: 100 sets
Packaging Details: 4 inner box in one carton box, 800sets/20'GP and 1600sets/40'HQ
Delivery Time: 2-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1500sets /month
Contact Now
Detailed Product Description
Pull And Push Force: 800N Rated Power: 120W
Running Speed: 120mm/s Rail Length: 3m, 3.3m, 3.6m
Apply Door Area: 12 Sqm Remote Distance: 25-35m
Remote Frequency: 433.92Mhz Remote Code: Rolling Code
High Light:

belt driven garage door opener

,

belt driven garage opener


Automatic sectional overhead garage door belt drive garage door opener door opener

Product Application

The motor can be widely used in houses and be easily installed on garage doors.At same time,It has high safety and convenience performance.





Main Features
1, Convenient for installing and debugging, with a high degree of automation
2, With Double-channel and humanized design of the remote control, self lock of the keys, operate sensitive and save, the remote distance applicable to more than 25M.
3, Automatic power check function, read the running power automatic and it will stop automatically if obstructed during
the process of rising and falling.
4, Flexible starting and stopping technique.
5, Electronic limit device, which can be memory and restore automatically.
6, Door opener can be self locked in case of power failure.
7, Safety and low voltage of lighting.

Product Details

Type:Garage Door Opener
Place of Origin:Guangdong, China (Mainland)
Brand Name:ZHONG TIAN
Standard Force:600N/800N/ 1000N
Apply Door Area:7㎡12㎡/ 15㎡
Rail Length:3000mm, 3300mm, 3600mm, 3900mm
Remote Frequency:433.92MHZ
Remote Distance:25-35m


Specification
Item ZTGD(|||)600 ZTGD(|||)800 ZTGD(|||)1000
Pull and Push Force 600N 800N 1000N
Rated Voltage AC:220-240V(50HZ-60HZ) AC:220-240V(50HZ-60HZ) AC:220-240V(50HZ-60HZ)
Motor Power 110W Max 154W Max 200W Max
Apply Door Size 7㎡ Max 12㎡ Max 15 ㎡ Max
Rail Length 3m,3.3m,3.6m,3.9m 3m,3.3m,3.6m,3.9m 3m,3.3m,3.6m,3.9m
Opener Noise Below 60db Below 60db Below 60db
Running Speed 120mm/s 120mm/s 120mm/s
Remote Distance 50m 50m 50m
Remote Control Code Rolling Code Rolling Code Rolling Code
Remote Frequency 433.92MHZ 433.92MHZ 433.92MHZ
Auto Lighting Turn off after 3~5minutes Turn off after 3~5minutes Turn off after 3~5minutes
Temperature range -45℃~70℃(-49℉~+158℉) -45℃~70℃(-49℉~+158℉) -45℃~70℃(-49℉~+158℉)

Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance



IncludingAccessories
Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance
Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance
Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance

1. Remote Controls

There are two pcs for one set, and the style as above picture

2. Chain or Belt Drive Rail

the length of Rail can be customized according your requirements

3. Hardware Bag



Optional Accessories

Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance

1 Photocell

To prevent serious injury or death from closing garage door. Can work with all ZhongTian openers.

2. Wireless Keypad

For use outside of the home to enable access to the garage. Can work with all ZhangTian openers.



3. Wireless Wall-mounted remote control

For use inside of the garage or/and room to enable access to the

garage. Can work with all ZhongTian openers.

4. Emergency Lock

For opening door from outside of garage when power off. Can work

with all ZhongTian openers.

5. Back-up Battery

For opening door when power off

Humanized Design Chain Drive Garage Door Opener 25m - 35m Remote Distance
